TP-702YA Mercury Transit
.jpg)
.jpg)
.jpg)
.jpg)

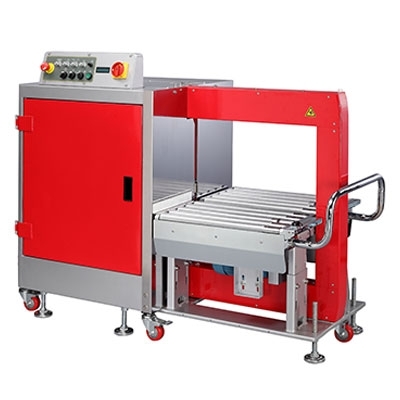

Mercury Transit TP-702YA is a high-speed fully automatic side-seal strapping machine built with Transpak Mercury strapping head and brushless DC motor technology. It can be put into a wide range of applications, such as household appliances, furniture, tile industries, logistics, etc. Inheriting all the advantages from Mercury TP-702, it is ideal for high capacity and efficiency automated lines.
Features
- Robust and compact strapping head
- Control panel with LCD display
- Free access to strap guides (patents registered)
- Inner strap dispenser design
- Downward tension force
- Auto strap ejector
- Strap end ejector
- Sensor controlled heater
- Up and down stream interlock
- Adjustable table height between 445 mm and 645 mm
Options
- Light tower with low strap sensor
- Small Package
- Siemens PLC
- Energy saving transit with auto sleep mode
- Side pusher
- Dual press bar
Green Tech
Technical Data
| Capacity | Up to 35 packages/minute |
| Strap Width | 5 mm, 6 mm, 9 mm, or 12 mm |
| Tension Range | 1 - 32 kg (for 5 mm, 6 mm, and 9 mm) 1 - 45 kg (for 12 mm) *Higher tension is on request |
| Weight | 340 kg |
| Electrical Requirements | 110V, 220V, 230V, 240V 50/60Hz 1PH 220V, 380V, 400V, 415V 50/60Hz 3PH |
