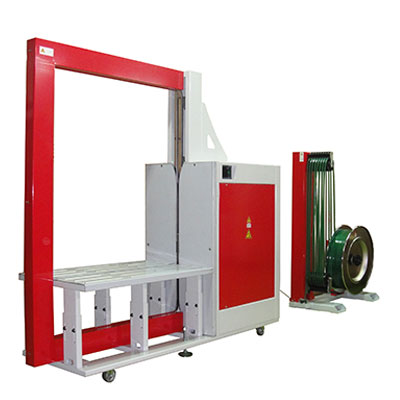

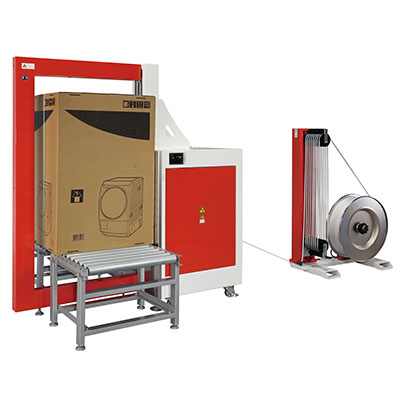

TP-601YPT Automatic machine for PET and PP Strapping
.jpg)
TP-601YPT is an automatic side-seal strapping machine for PP and PET strapping (9 mm, 12 mm, or 15.5 mm). With the extra-large arch sizes available, TP-601YPT is ideal for application on large and/or heavy products, household appliances (like refrigerator, television, or washing machine), and various palletized products. It can be integrated with most production lines.
Features
- Friction weld sealing technology
- Siemens PLC
- Electronic tension control. Tension up to 1500 N (150 kg).
- Auto Strap Refeed
Options
- Photo-eye and Interlock for fully-automatic application
- Emergency stop switch
- Foot pedal switch
- With adjustable free roller table (TP-601YPT-T)
Technical Data
| Capacity | Up to 11 cycles/minute (60Hz) |
| Strap Width | 9 mm, 12 mm, or 15.5 mm |
| Tension Range | 20 - 150 kg |
| Strap Core Size | 406 mm/ 200 mm/ 230mm/ 280 mm |
| Weight | 355 kg |
| Electrical Requirements | 220V, 380V, 400V, 415V 50/60Hz 3PH |
* Requires safety devices to meet CE regulations
